Power Supply with Current Control

In electronic experimentation, whether professional or hobbyist, using a power supply with current control offers numerous advantages over traditional power supplies without this function. Whether testing circuits, charging batteries, or conducting lab experiments, current control is a crucial feature for achieving optimal and safe results. In this article, we will explore some of the main benefits of using a power supply with current control.

1. Component Protection

One of the most significant advantages of current control is the protection of electronic components. When testing or debugging new circuits, there is always a risk of overcurrent, which can damage or even destroy components. A power supply with current control allows you to set a maximum current limit, preventing components from overheating or sustaining irreversible damage. This feature is especially useful for sensitive components such as LEDs, transistors, and integrated circuits.

2. Constant Current Battery Charging

Battery charging is another crucial application where current control is indispensable. Charging a battery with constant current ensures that the battery charges efficiently and safely, avoiding overheating and prolonging the battery's lifespan. Many types of batteries, such as Li-ion and NiMH, require a specific charging current to function properly and safely. A power supply with current control can be set to provide exactly the required current, ensuring optimal charging.

3. Operational Stability

During experiments and lab tests, current stability is essential for obtaining accurate and repeatable data. A power supply with current control can maintain a constant current even when there are load variations. This is crucial for applications such as electronic component characterization or analog circuit experimentation, where even small current variations can significantly affect the results.

4. Safety

Safety is always a priority in any electronic application. A power supply with current control reduces the risk of incidents such as short circuits or overloads. By setting a current limit, you can prevent excessive current flow that could cause fires or explosions, especially when working with high-power circuits or flammable substances.

5. Diagnostics and Debugging

Current control facilitates circuit diagnostics and debugging. If a circuit consumes more current than expected, it may indicate a fault or malfunction. By using a power supply with current control, you can precisely monitor current consumption and quickly identify any issues. This makes the troubleshooting process more efficient and less time-consuming.

6. Application Flexibility

A power supply with current control offers greater flexibility across a wide range of applications. Whether testing analog, digital, or mixed circuits, or working with different types of batteries and components, the ability to control current allows you to tailor the power supply to the specific needs of the project. This makes the power supply a versatile and indispensable tool in every electronics engineer's or technician's lab.

Conclusion

A power supply with current control not only protects components and ensures safe battery charging but also offers operational stability, safety, ease of diagnosis, and great flexibility in applications. Investing in such a power supply can make the difference between a successful and a failed project, making it an essential tool for anyone working in the field of electronics.

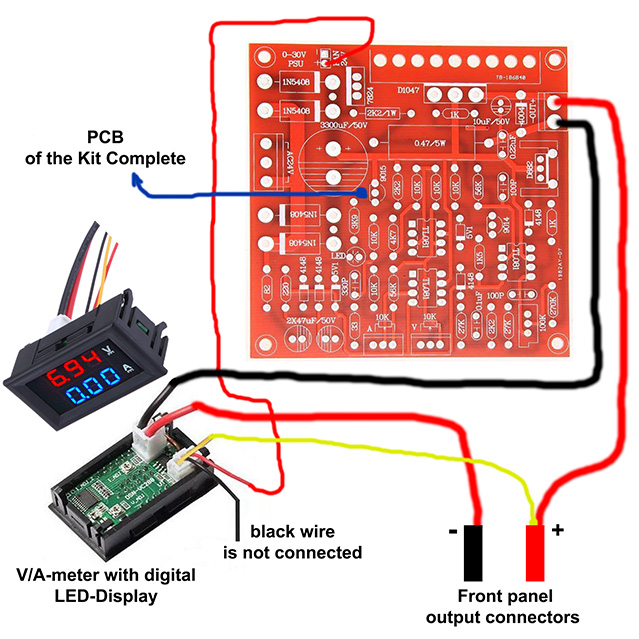

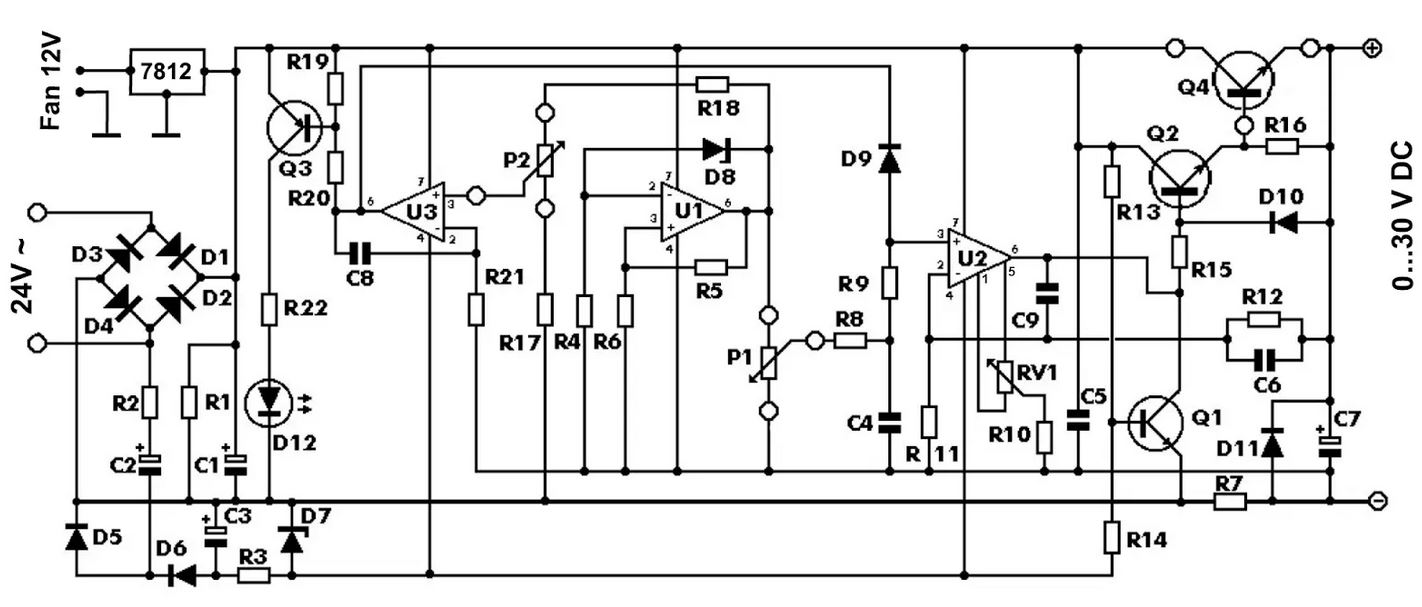

The schematics are from a kit available on EBAY

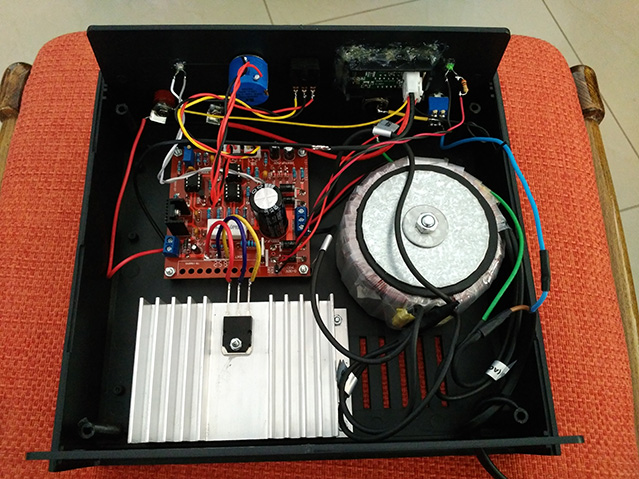

This is the link to Mile Kokotov's article, who assembled the kit. https://www.qsl.net/z33t/dc_0-30v_0-3A_eng.html

L.Pautasso (contact: lpautas gmail) & I.A.
